HEATER MICA PLATE
    RP 65 & RM 63

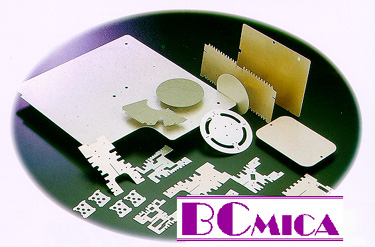

    Heater Mica Plate is produced using mica and a special heat resistant adhesive. It is widely used as a heat resistant barrier for hair dryers, electric irons, electric cookers and other heating appliances because of its superior heat reflection ability and heat resistance. It generates very little smoke even at excessive temperatures.
    It has the acquired UL94V-0 approval with the file No. E173549.

    * Breakdonw Voltage : 25 kv/mm
    * Insulation Resistance : 5 x 104 M Ohm.
    * Flecxural Strength : 25 kgf/mm
    * Arc Resistance : >400 sec.
    * Sheet Size : 600 x 1,000 mm

    FLEXIBLE MICA PLATE
    SM 61



    Flexible Mica Plate is good heat resistant insulating material, which retains its permanent flexibility at room temperature. It is widely used for insulation on bending parts of dry type transformers, eletric furnaces and electric home appliances.
    SM61 is UL94V-0 approved with file No. E173549.


    Mtl Dsg Color Min Thk
        mm         		UL 94 flame class Elec RTI Mech
        w/ imp         		RTI Mech
       w/o imp
    RM63
    Gold
    0.2
    94V-0
    200
    200
    200
    RP65
    Silver
    0.2
    94V-0
    200
    200
    200
    SM61
    Silver
    0.15
    94V-0
    200
    200
    200

    ® Recognized Component - Plastics

    UL File No. E173549 Mica Sheet

    Mtl Dsg Color Min Thk
        mm         		UL 94 flame class
    SM62
    Silver
    0.15
    94V-0
    8M81
    Silver
    0.15
    94V-0

    UL File No. E222948 Silicone Bonded Mica

    Product(type)
    Appearance
    Color & Characteristic
    Pastern Ingredient(%)
    		 Heating Loss(%) UL 94 Flame Class Fame Time(S)
    		 Application
    8M83 horniness anti-heat isinglass board
    		 no ventages, air bubble, impurities etc.It looks very smoothly.

    		silver-gray & horniness
    		 8~10 ¡Ü1 .0 UL94V-0 Standard

    		¡Ü40
    our products can be used as insulator & framework which composed of electronic-appliance under 500¡æ

    8M81 & SM62 soft anti-heat isinglass board
    		 silver-gray & horniness
    8M85 horniness anti-heat isinglass board
    		 golden & horniness
    8M82 soft anti-heat isinglass board
    		 golden & horniness
